In this blog post I will show you how to migrate a Microsoft LightSwitch application with Radzen.

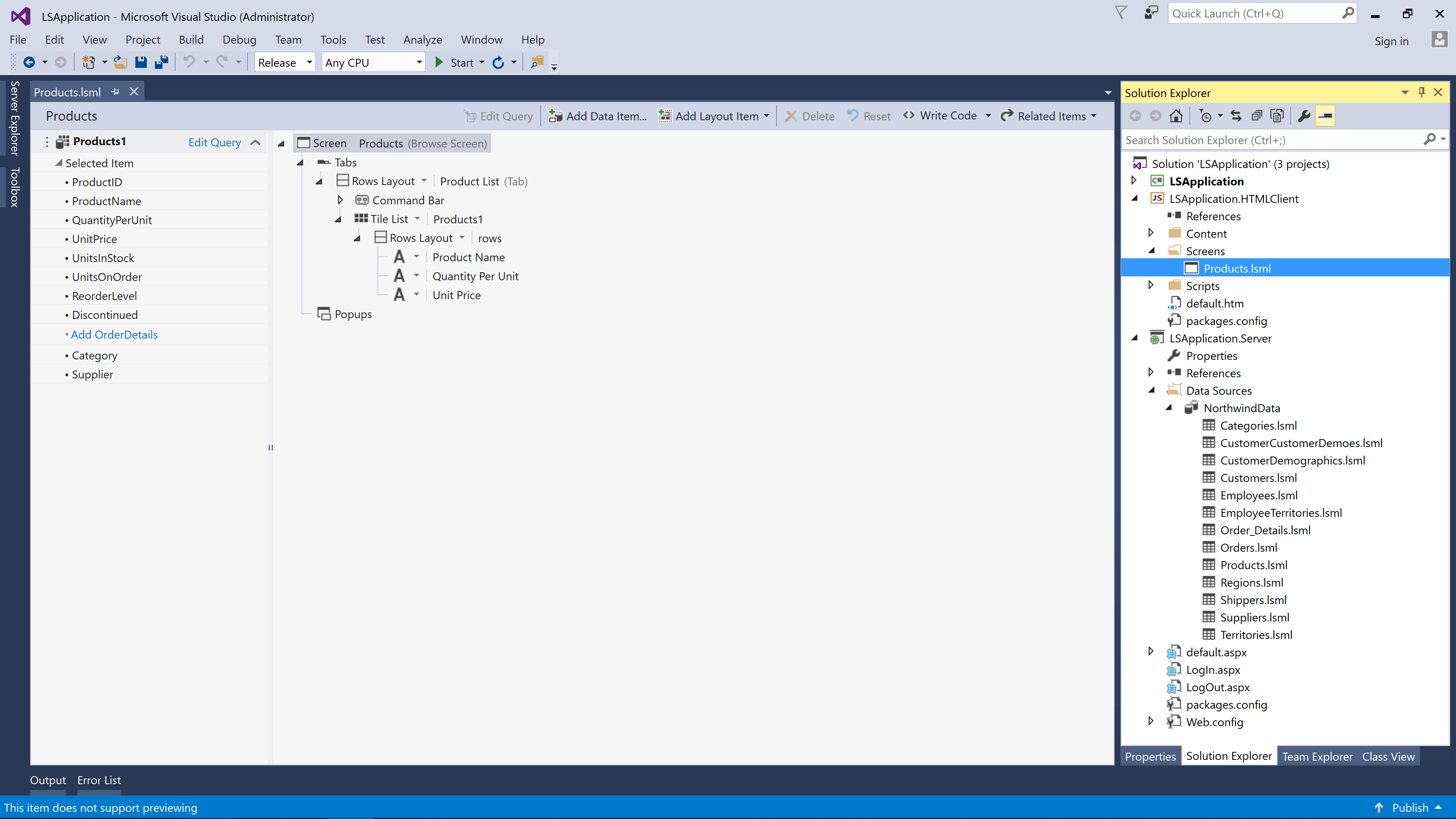

1. Create а new Microsoft LightSwitch application that displays the Products table from the Northwind database:

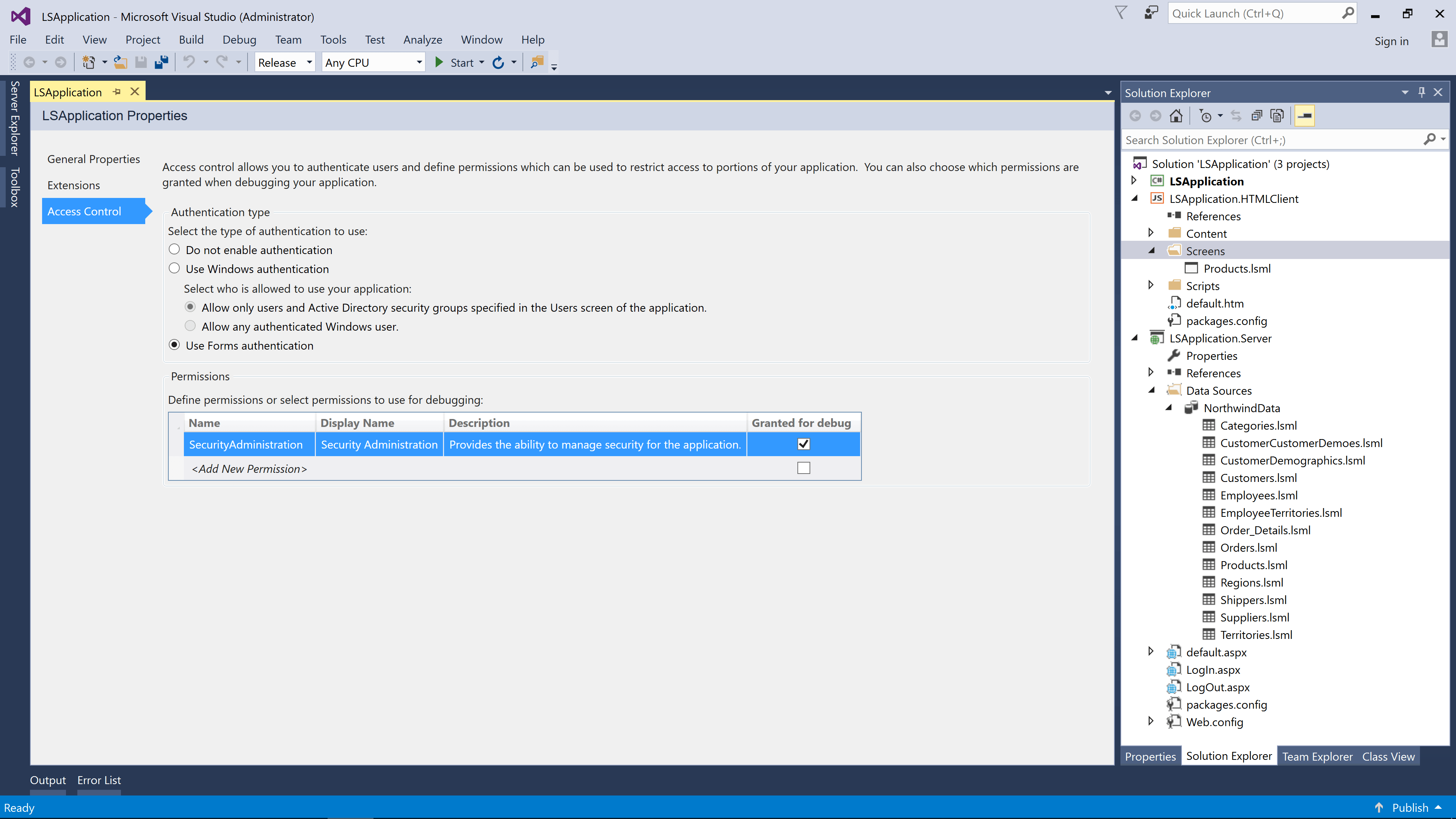

2. Enable Forms authentication for application access control:

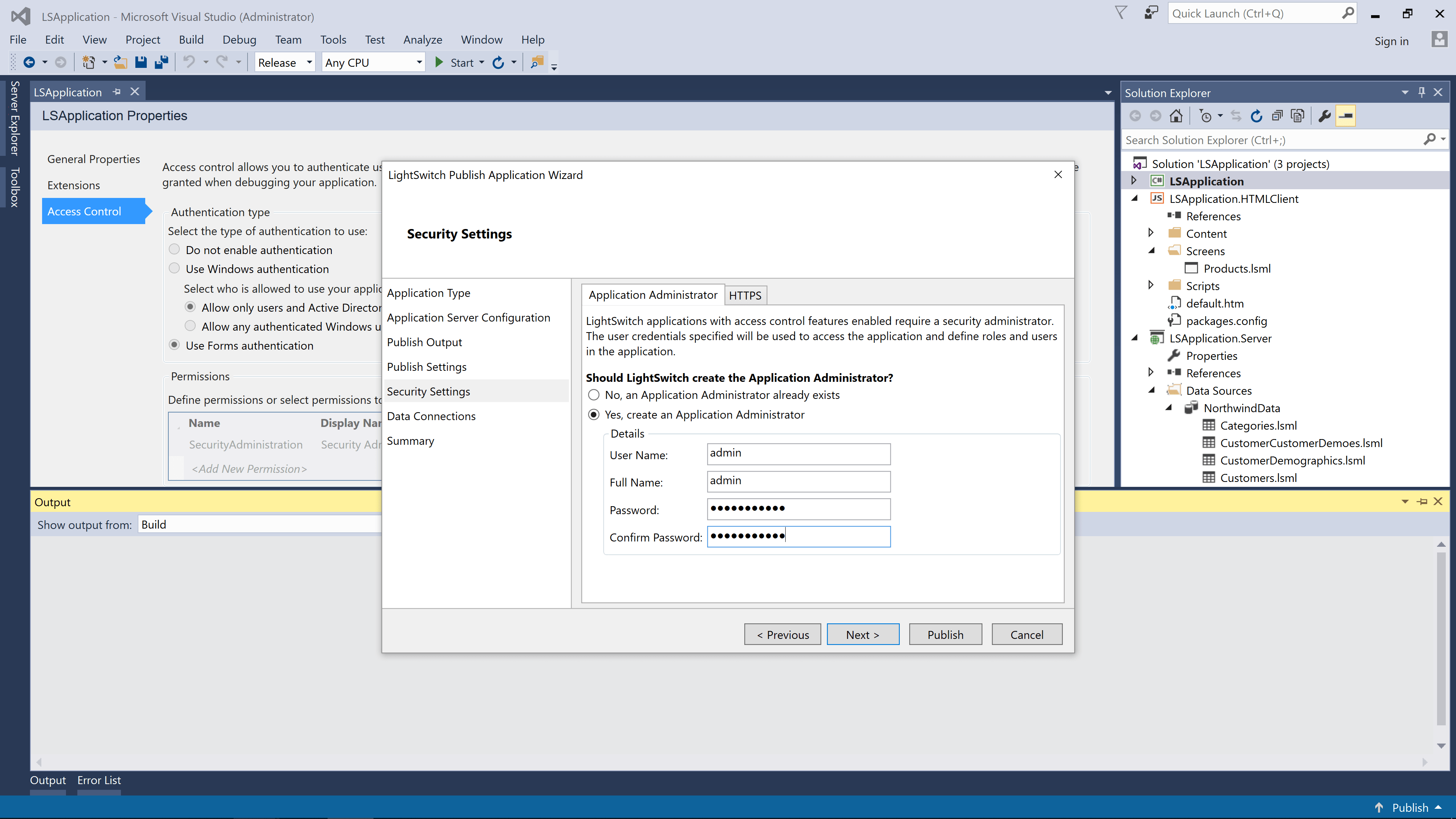

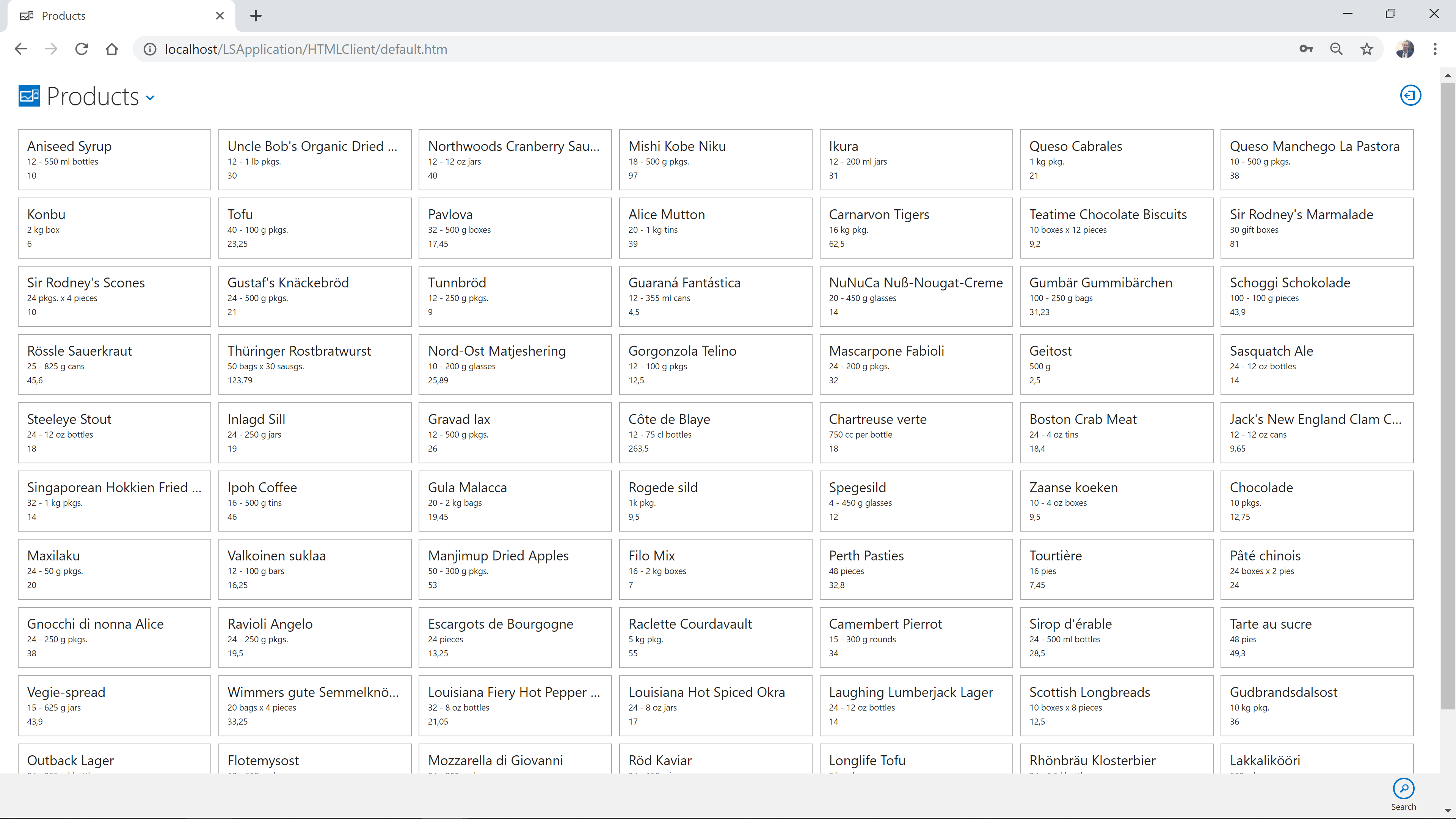

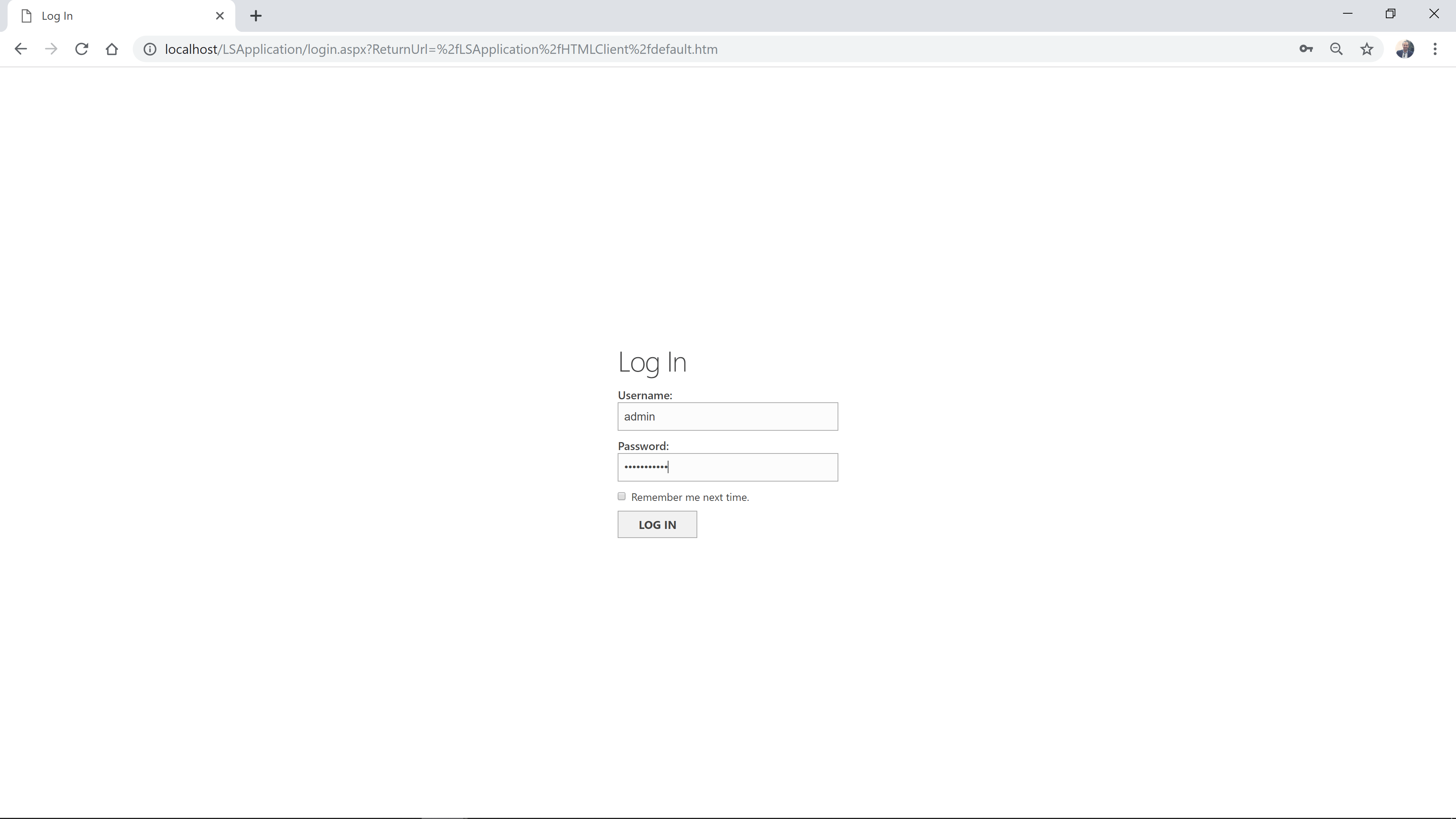

3. Publish the app to IIS using an admin user as the application administrator:

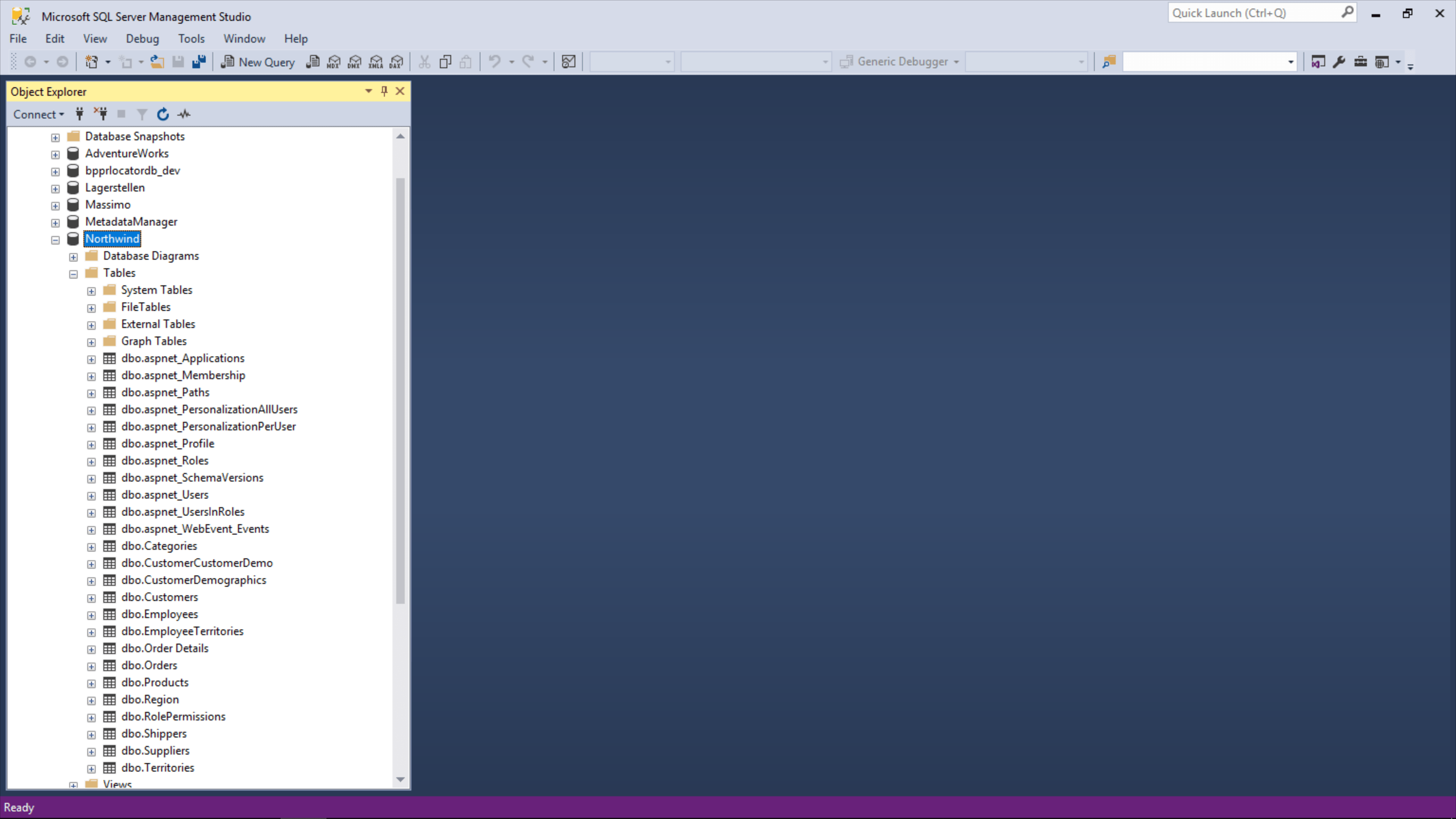

This will create the ASP.NET membership tables. LightSwitch uses those to store users, passwords, roles, etc:

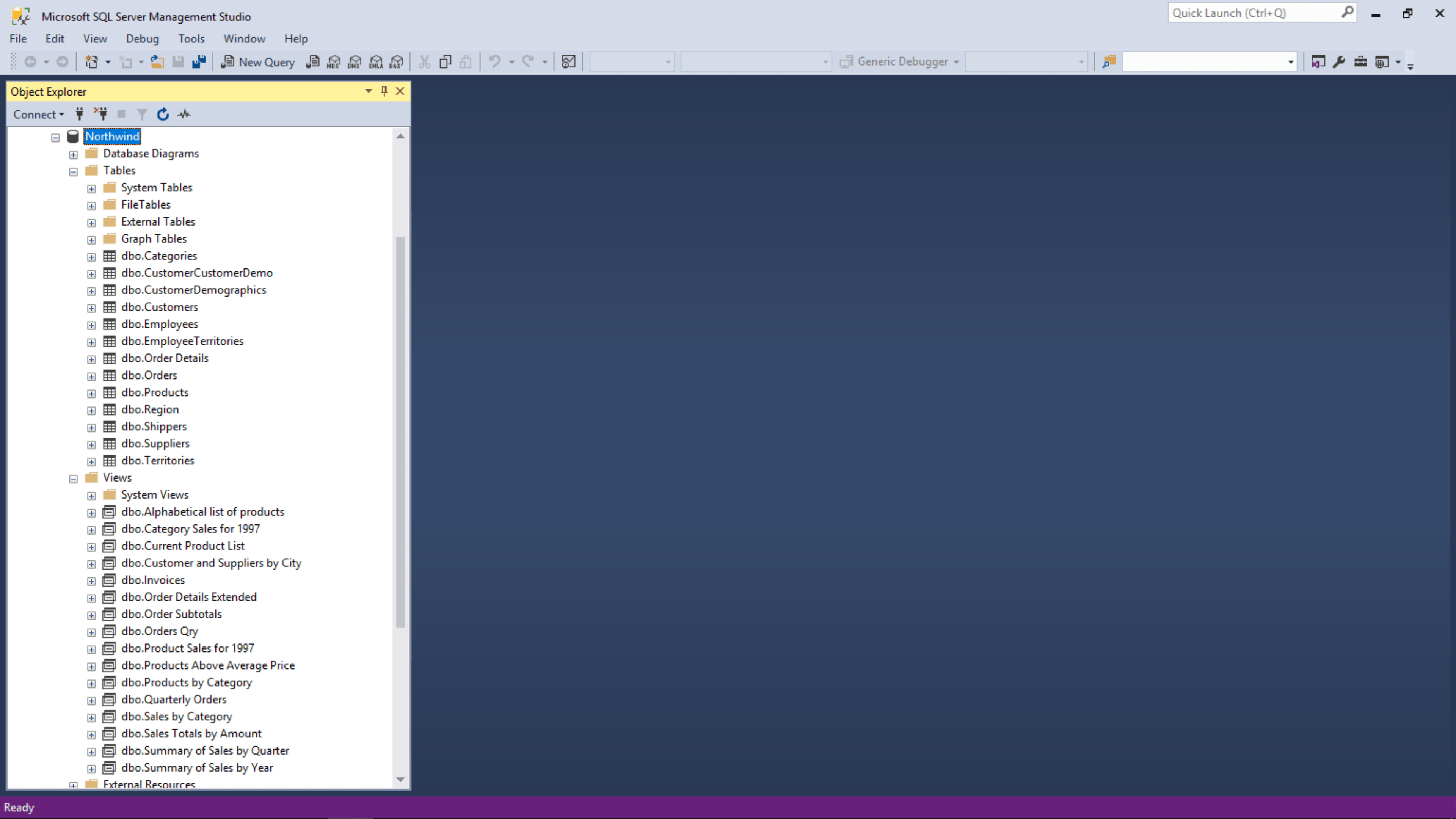

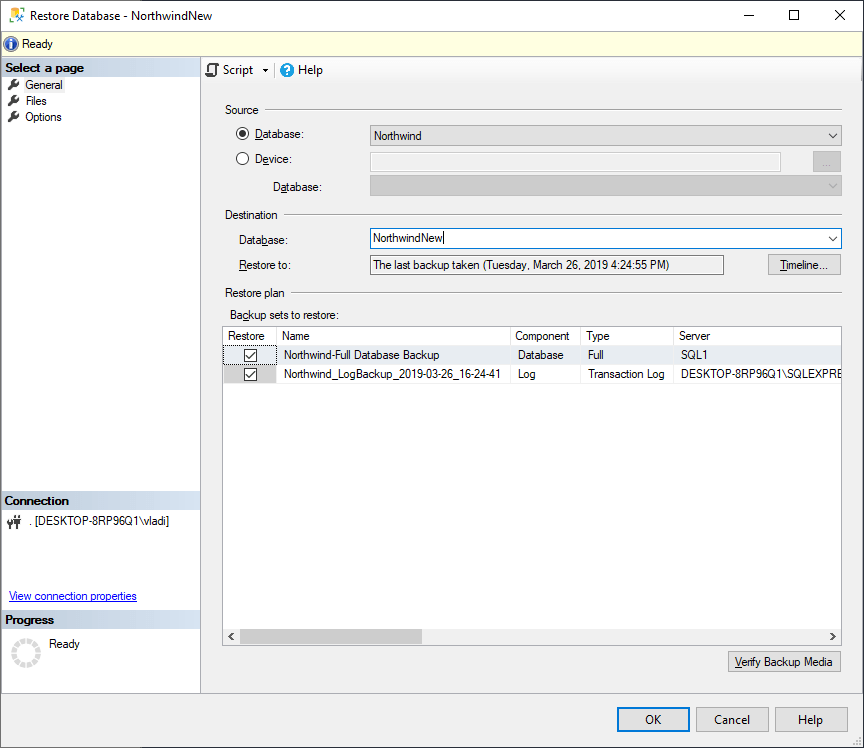

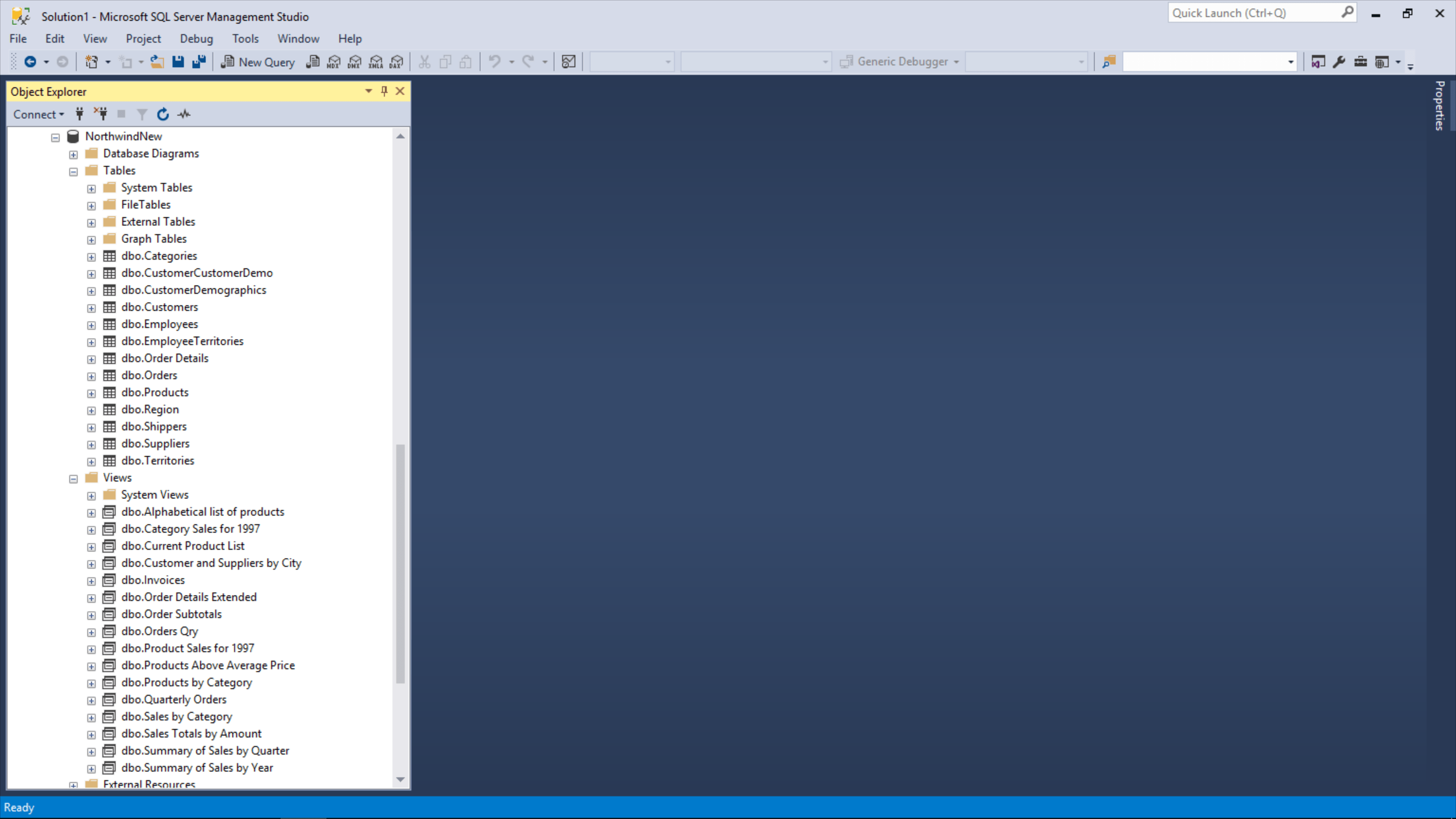

4. Create a new database as a copy of the existing one used in the LightSwitch application:

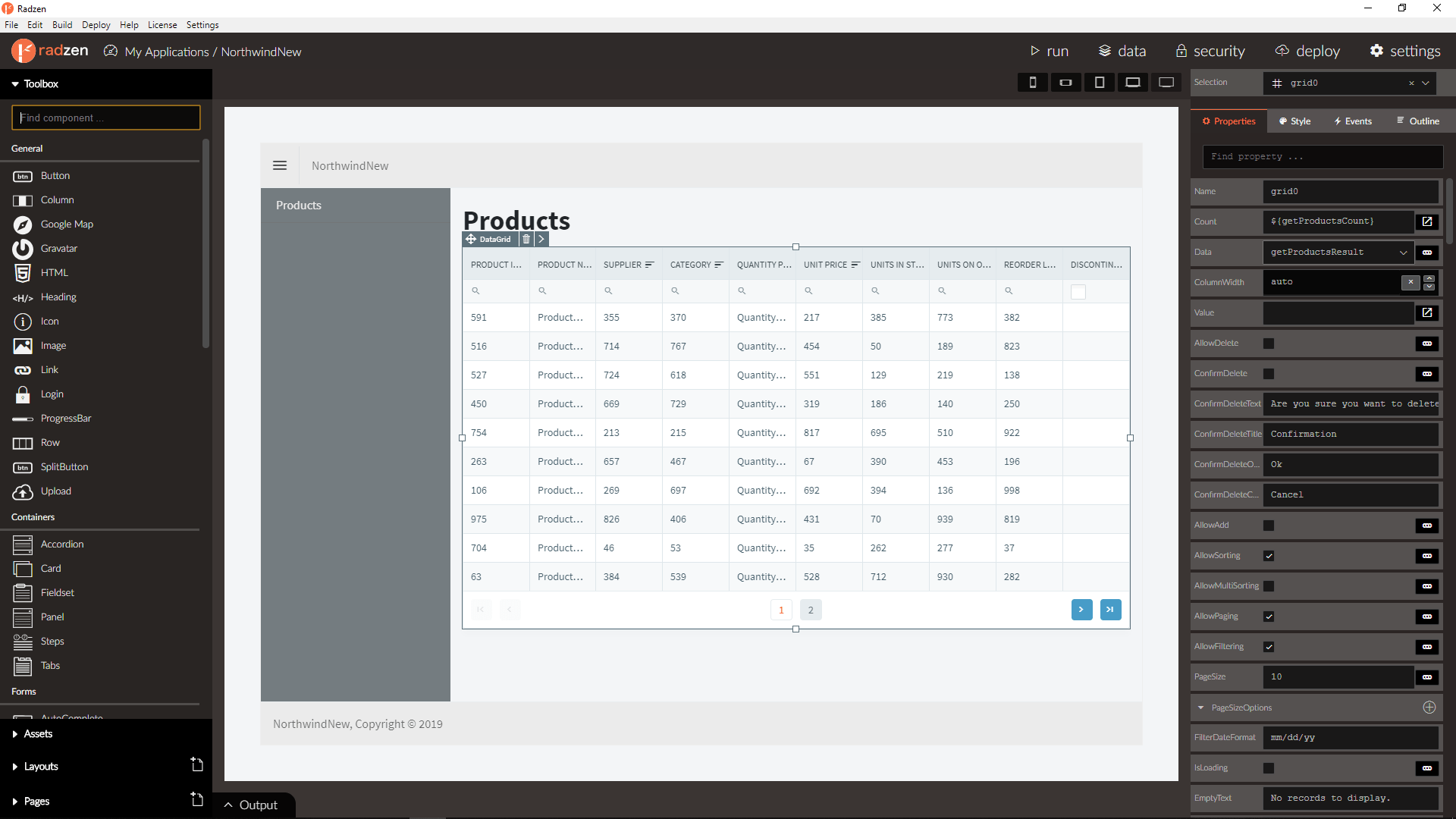

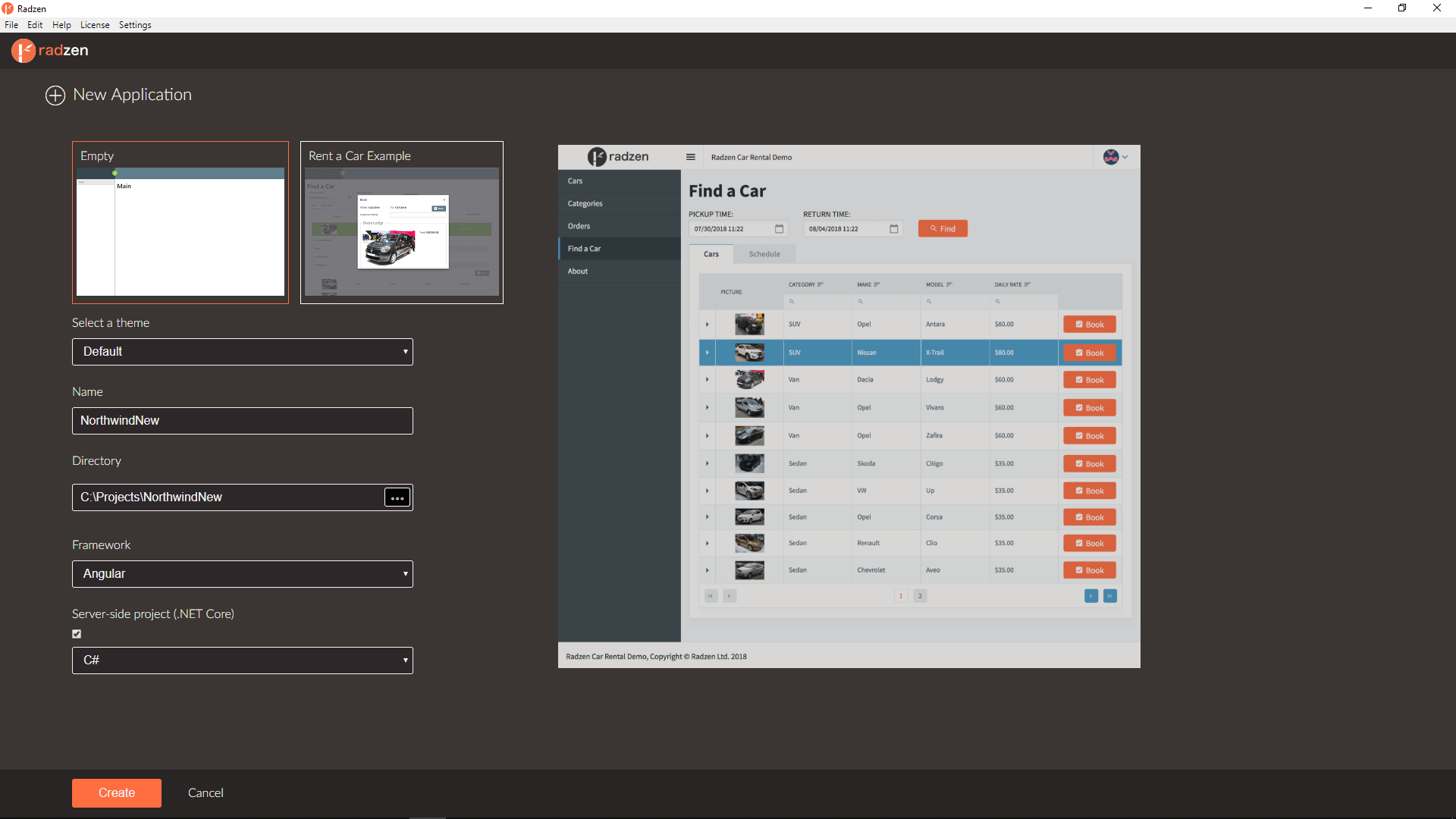

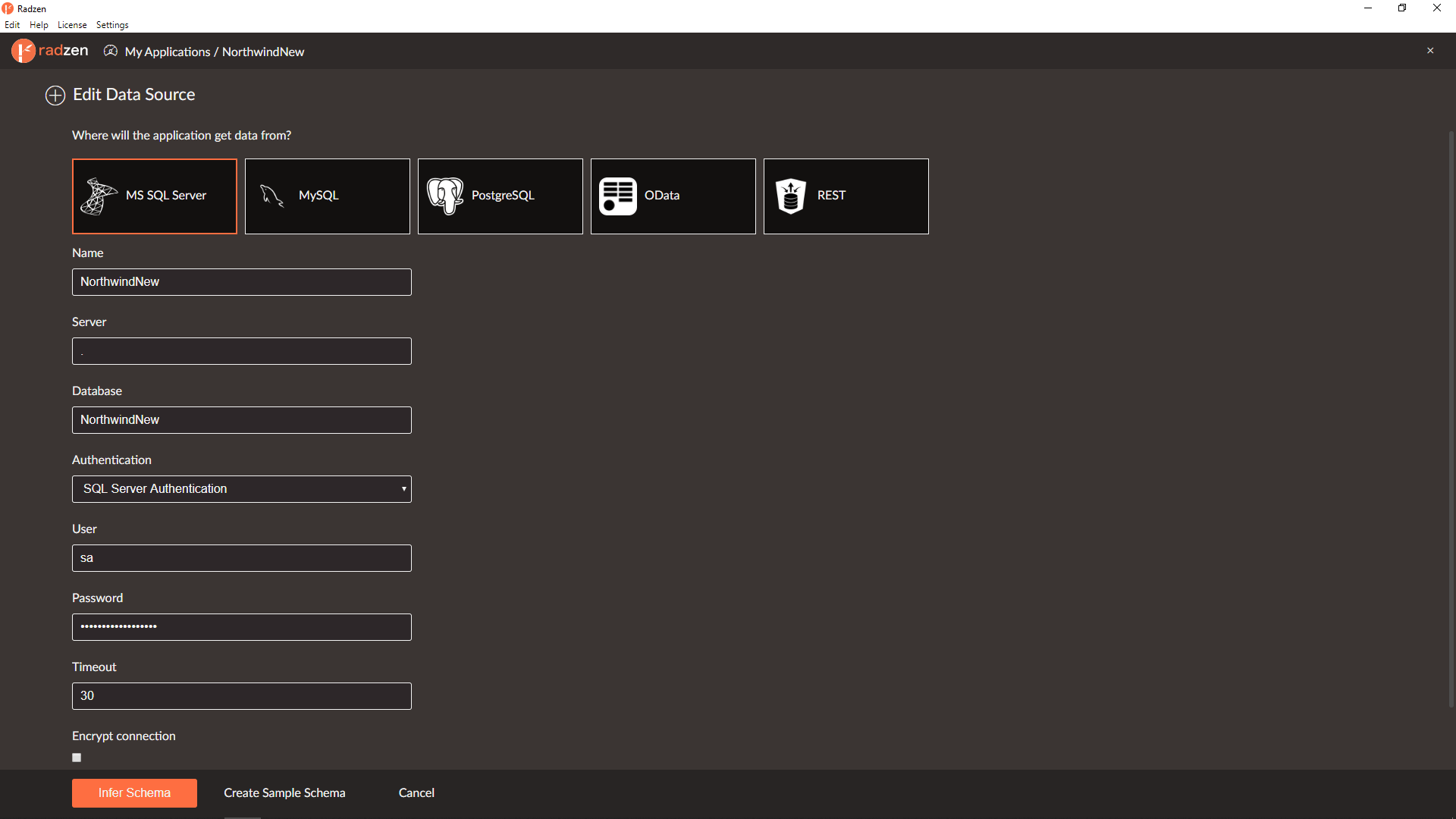

5. Create a new Radzen application that displays the Products table:

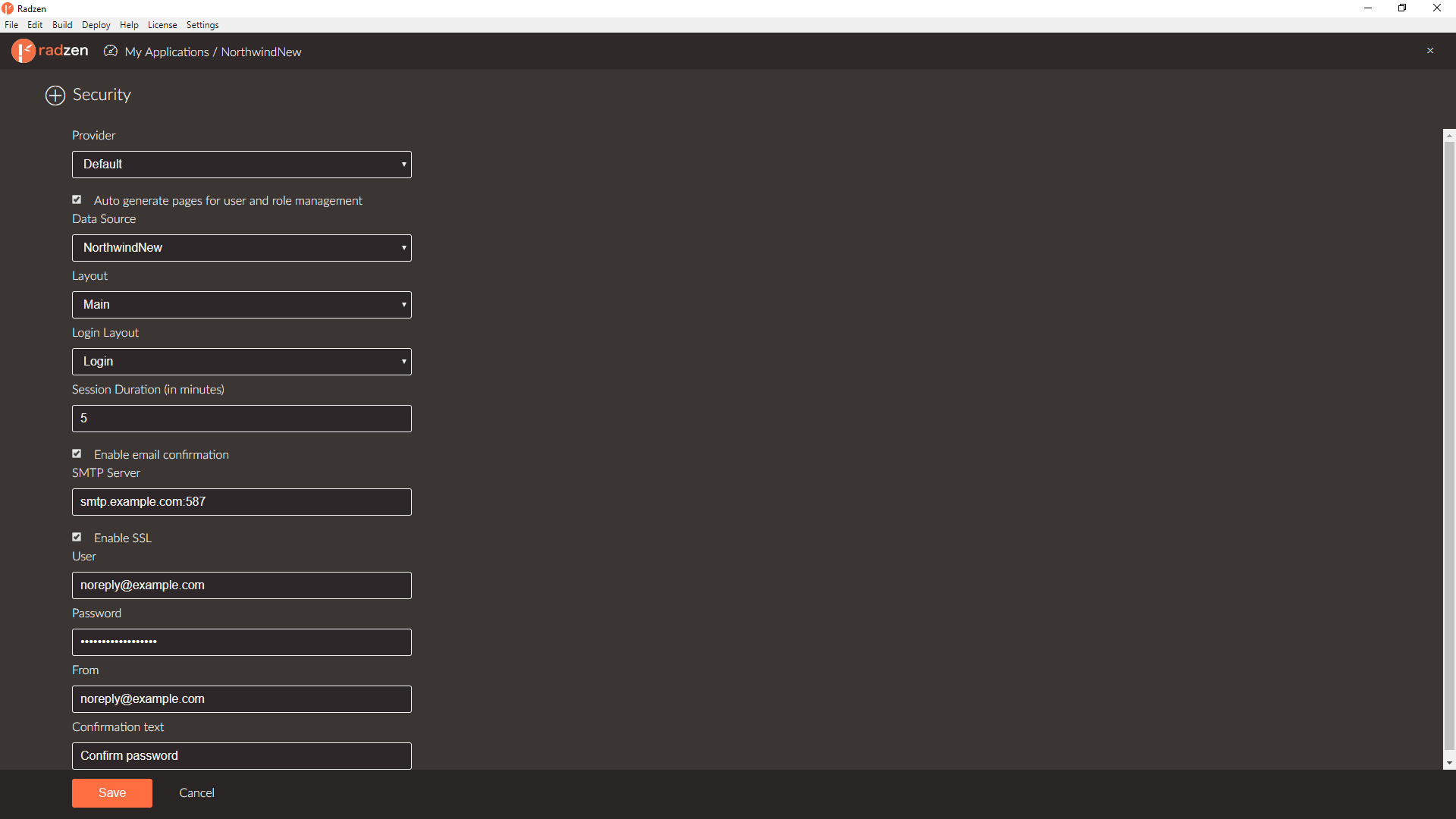

6. Enable security with email confirmation:

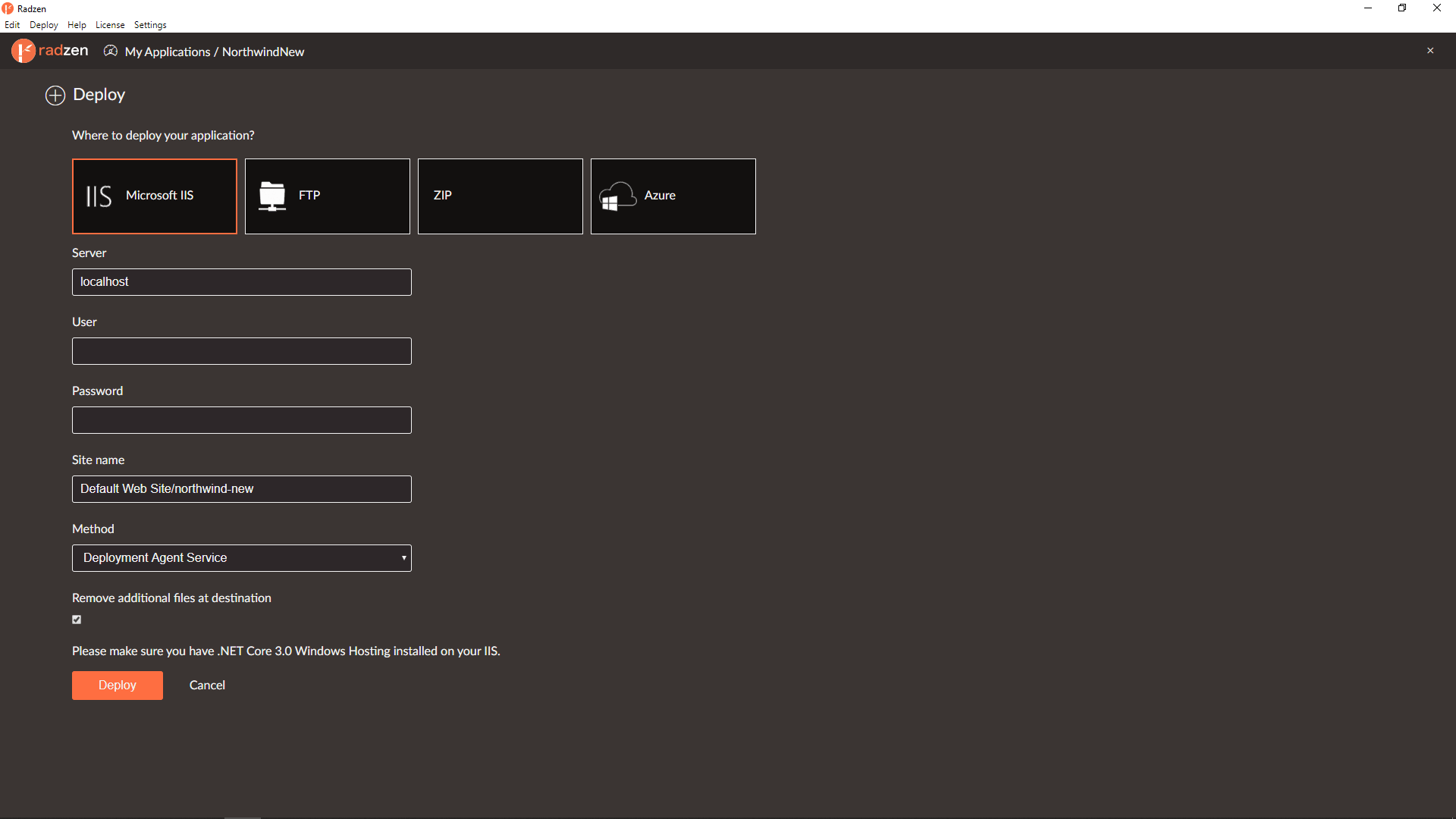

7. Deploy the application to IIS from Radzen:

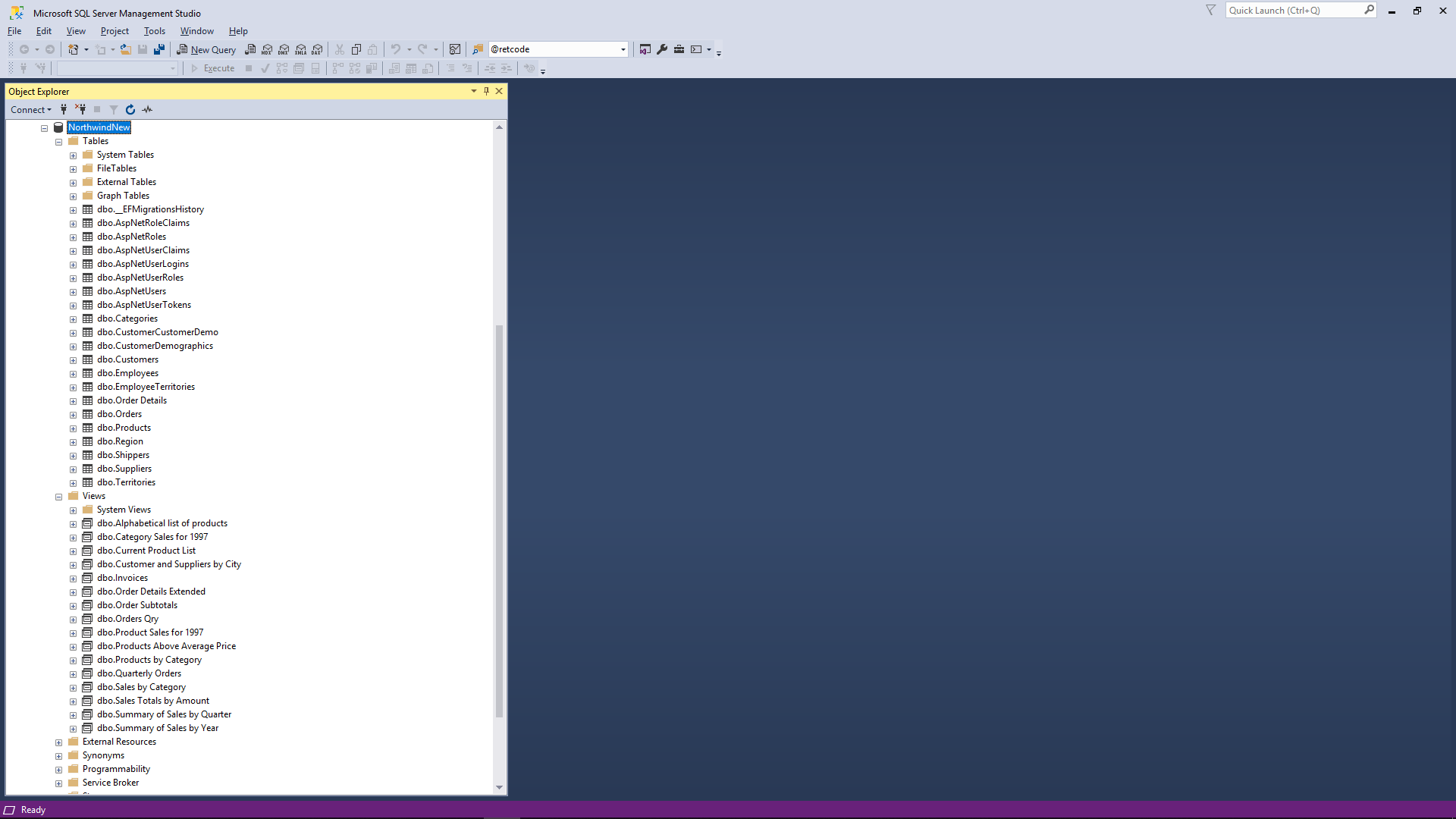

We now have the ASP.NET Core 2.0 Identity tables in our new database:

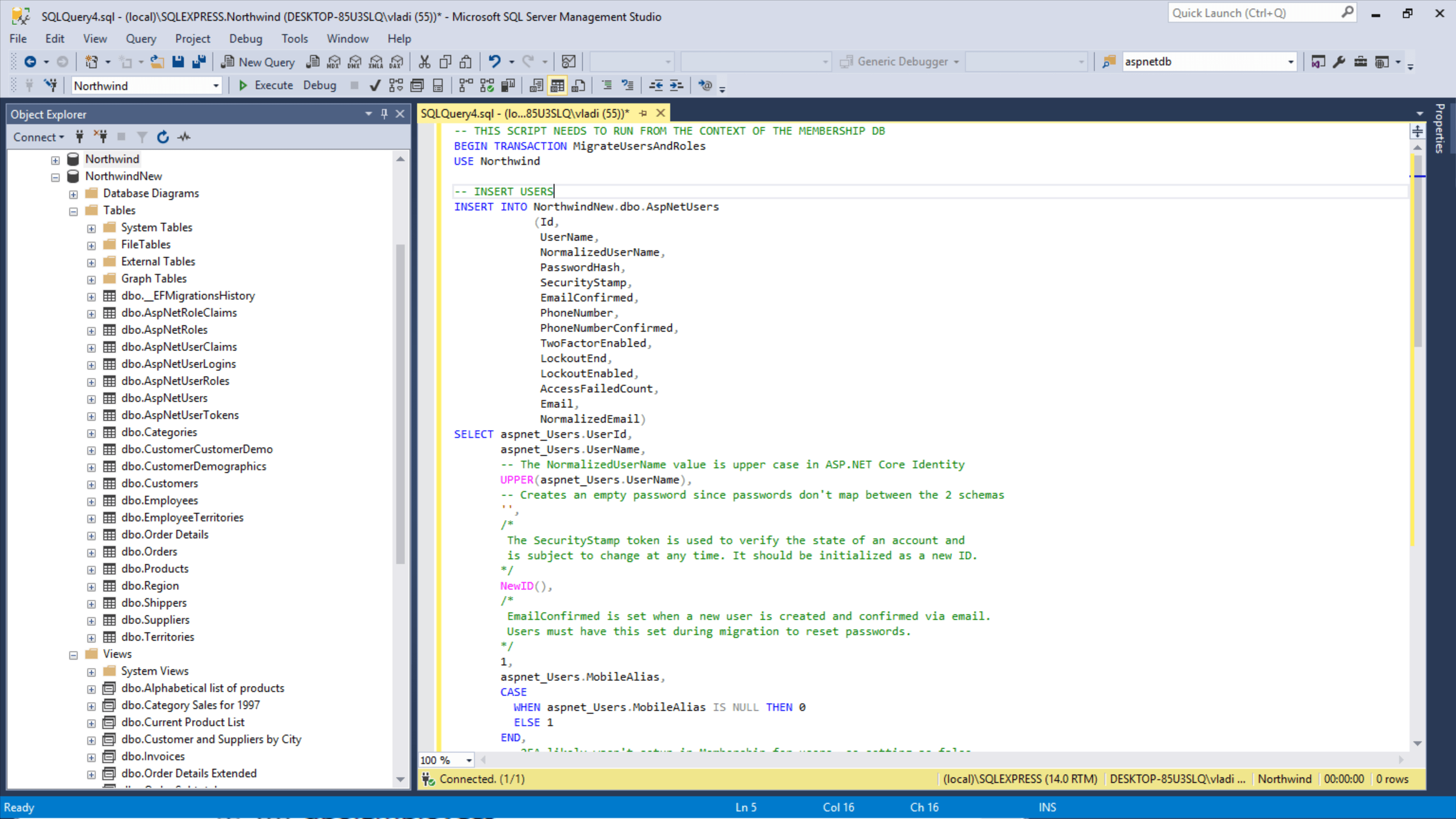

and we can use the following SQL script to migrate our users, passwords, roles, etc. to the new database:
-- THIS SCRIPT NEEDS TO RUN FROM THE CONTEXT OF THE MEMBERSHIP DB
BEGIN TRANSACTION MigrateUsersAndRoles
USE Northwind
-- INSERT USERS
INSERT INTO NorthwindNew.dbo.AspNetUsers
(Id,
UserName,
NormalizedUserName,
PasswordHash,
SecurityStamp,
EmailConfirmed,
PhoneNumber,
PhoneNumberConfirmed,
TwoFactorEnabled,
LockoutEnd,
LockoutEnabled,
AccessFailedCount,
Email,
NormalizedEmail)
SELECT aspnet_Users.UserId,
aspnet_Users.UserName,
-- The NormalizedUserName value is upper case in ASP.NET Core Identity
UPPER(aspnet_Users.UserName),
-- Creates an empty password since passwords don't map between the 2 schemas
'',
/*
The SecurityStamp token is used to verify the state of an account and
is subject to change at any time. It should be initialized as a new ID.
*/
NewID(),
/*
EmailConfirmed is set when a new user is created and confirmed via email.
Users must have this set during migration to reset passwords.
*/
1,
aspnet_Users.MobileAlias,
CASE
WHEN aspnet_Users.MobileAlias IS NULL THEN 0
ELSE 1
END,
-- 2FA likely wasn't setup in Membership for users, so setting as false.
0,
CASE
-- Setting lockout date to time in the future (1,000 years)
WHEN aspnet_Membership.IsLockedOut = 1 THEN Dateadd(year, 1000,
Sysutcdatetime())
ELSE NULL
END,
aspnet_Membership.IsLockedOut,
/*
AccessFailedAccount is used to track failed logins. This is stored in
Membership in multiple columns. Setting to 0 arbitrarily.
*/
0,
aspnet_Membership.Email,
-- The NormalizedEmail value is upper case in ASP.NET Core Identity
UPPER(aspnet_Membership.Email)
FROM aspnet_Users
LEFT OUTER JOIN aspnet_Membership
ON aspnet_Membership.ApplicationId =
aspnet_Users.ApplicationId
AND aspnet_Users.UserId = aspnet_Membership.UserId
LEFT OUTER JOIN NorthwindNew.dbo.AspNetUsers
ON aspnet_Membership.UserId = AspNetUsers.Id
WHERE AspNetUsers.Id IS NULL
-- INSERT ROLES
INSERT INTO NorthwindNew.dbo.AspNetRoles(Id, Name)
SELECT RoleId, RoleName
FROM aspnet_Roles;
-- INSERT USER ROLES
INSERT INTO NorthwindNew.dbo.AspNetUserRoles(UserId, RoleId)
SELECT UserId, RoleId
FROM aspnet_UsersInRoles;
IF @@ERROR <> 0
BEGIN
ROLLBACK TRANSACTION MigrateUsersAndRoles
RETURN
END
COMMIT TRANSACTION MigrateUsersAndRoles

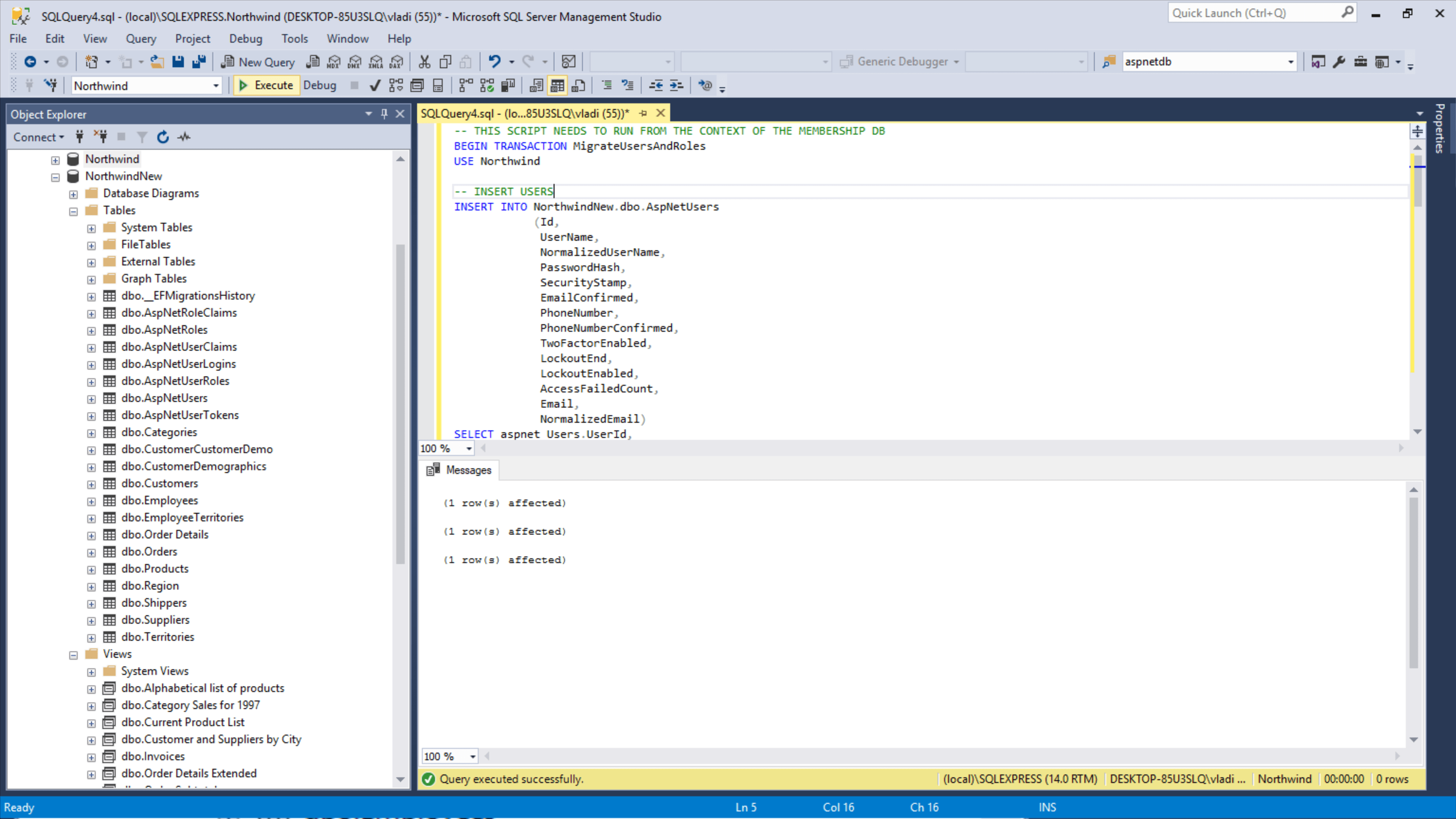

We are done!

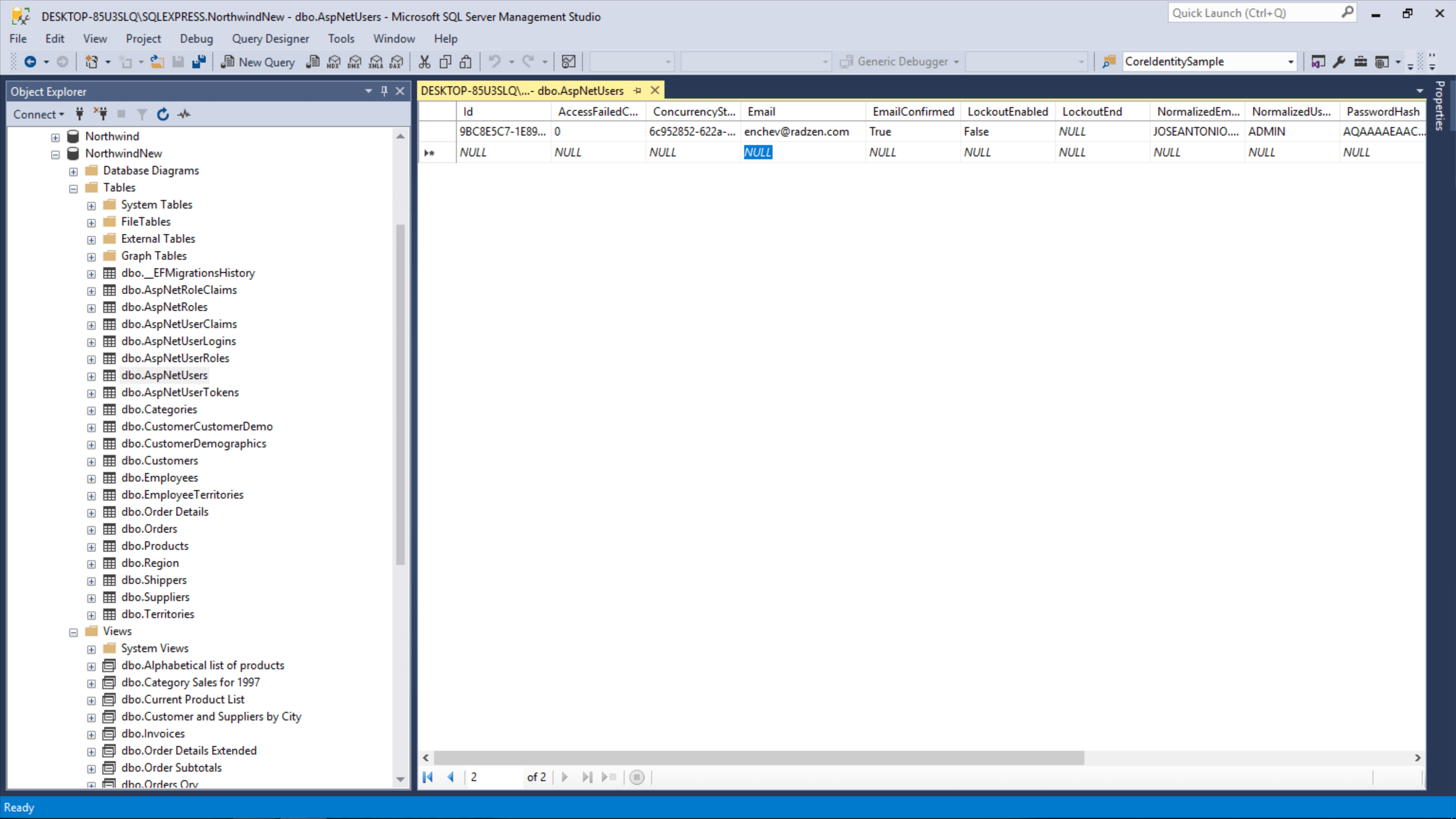

Now we only need to reset the password from the deployed Radzen application. Microsoft LightSwitch apps needed either a desktop app or custom pages for user management. For the purpose of this blog post I’ll take the shortcut and I will enter my admin user email directly in the database:

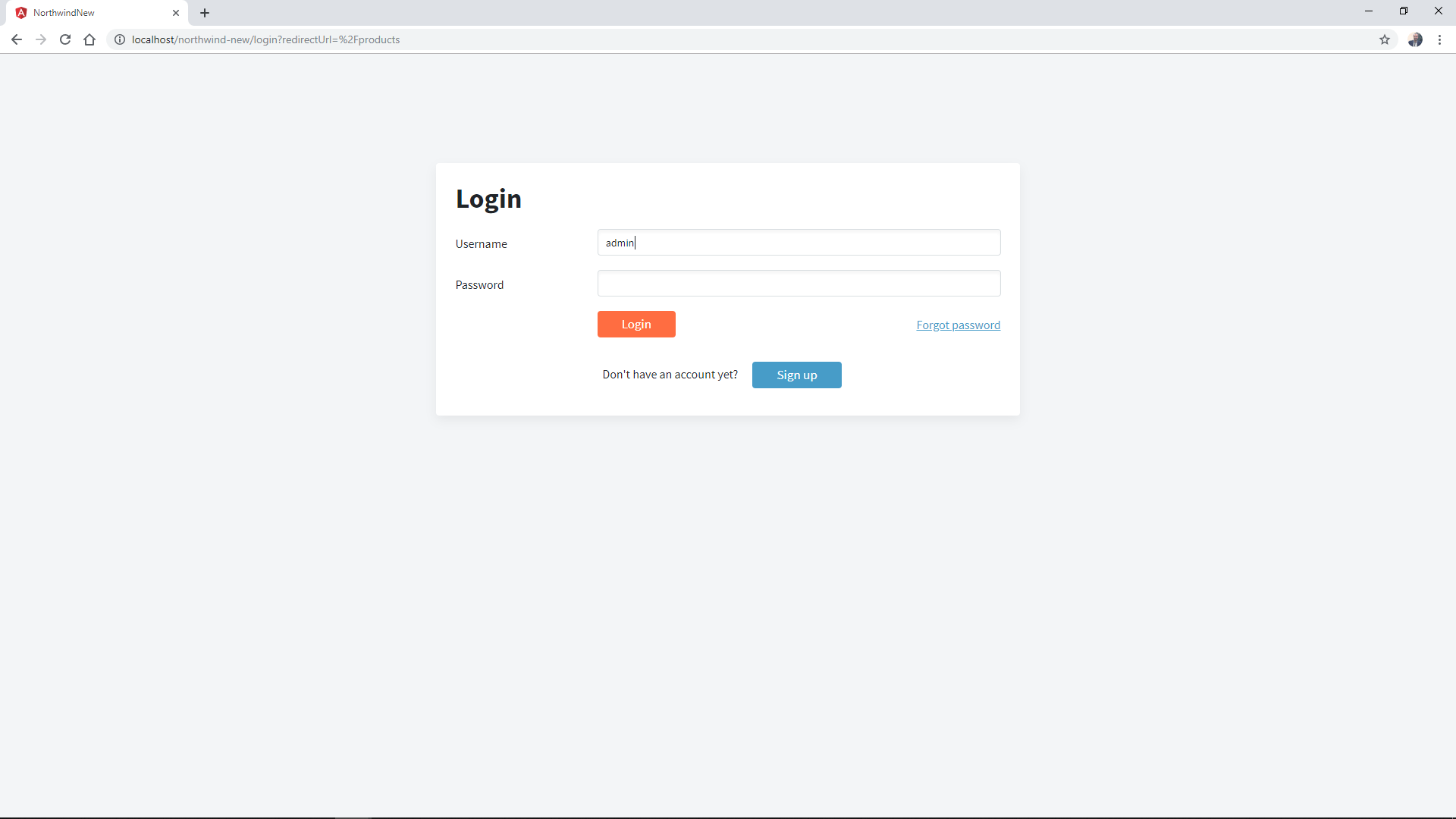

Now we can reset the password from the deployed Radzen application:

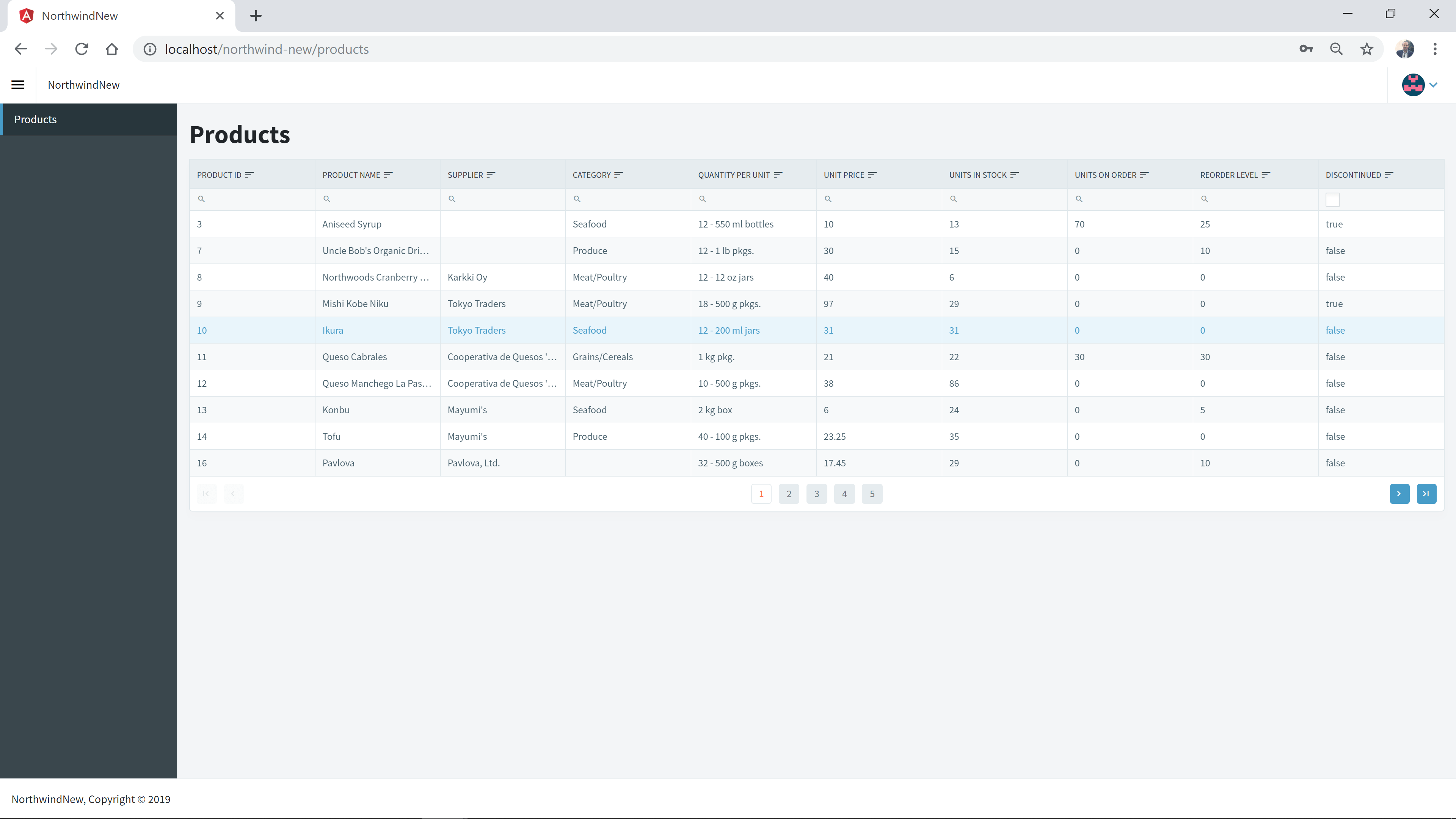

You will receive email with a link to generate new password and you can use it to login:
If you don’t want your users to reset their passwords you can use a custom password hasher which makes ASP.NET Membership (LightSwitch) passwords work with ASP.NET Core Identity (Radzen):
We need first to copy both Password and PasswordSalt from old aspnet_Membership table:
-- THIS SCRIPT NEEDS TO RUN FROM THE CONTEXT OF THE MEMBERSHIP DB
BEGIN TRANSACTION MigrateUsersAndRoles
USE Northwind
-- INSERT USERS
INSERT INTO NorthwindNew.dbo.AspNetUsers
(Id,
UserName,
NormalizedUserName,
PasswordHash,
SecurityStamp,
EmailConfirmed,
PhoneNumber,
PhoneNumberConfirmed,
TwoFactorEnabled,
LockoutEnd,
LockoutEnabled,
AccessFailedCount,
Email,
NormalizedEmail)
SELECT aspnet_Users.UserId,
aspnet_Users.UserName,
-- The NormalizedUserName value is upper case in ASP.NET Core Identity
UPPER(aspnet_Users.UserName),
-- Copy both Password and PasswordSalt
aspnet_Membership.Password + ':' + aspnet_Membership.PasswordSalt,
/*
The SecurityStamp token is used to verify the state of an account and
is subject to change at any time. It should be initialized as a new ID.
*/
NewID(),
/*
EmailConfirmed is set when a new user is created and confirmed via email.
Users must have this set during migration to reset passwords.
*/
1,
aspnet_Users.MobileAlias,
CASE
WHEN aspnet_Users.MobileAlias IS NULL THEN 0
ELSE 1
END,
-- 2FA likely wasn't setup in Membership for users, so setting as false.
0,
CASE
-- Setting lockout date to time in the future (1,000 years)
WHEN aspnet_Membership.IsLockedOut = 1 THEN Dateadd(year, 1000,
Sysutcdatetime())
ELSE NULL
END,
aspnet_Membership.IsLockedOut,
/*
AccessFailedAccount is used to track failed logins. This is stored in
Membership in multiple columns. Setting to 0 arbitrarily.
*/
0,
aspnet_Membership.Email,
-- The NormalizedEmail value is upper case in ASP.NET Core Identity
UPPER(aspnet_Membership.Email)
FROM aspnet_Users
LEFT OUTER JOIN aspnet_Membership
ON aspnet_Membership.ApplicationId =
aspnet_Users.ApplicationId
AND aspnet_Users.UserId = aspnet_Membership.UserId
LEFT OUTER JOIN NorthwindNew.dbo.AspNetUsers
ON aspnet_Membership.UserId = AspNetUsers.Id
WHERE AspNetUsers.Id IS NULL
-- INSERT ROLES
INSERT INTO NorthwindNew.dbo.AspNetRoles(Id, Name)
SELECT RoleId, RoleName
FROM aspnet_Roles;
-- INSERT USER ROLES
INSERT INTO NorthwindNew.dbo.AspNetUserRoles(UserId, RoleId)
SELECT UserId, RoleId
FROM aspnet_UsersInRoles;
IF @@ERROR <> 0
BEGIN
ROLLBACK TRANSACTION MigrateUsersAndRoles
RETURN
END
COMMIT TRANSACTION MigrateUsersAndRoles
Just create a server\Startup.Custom.cs file in the Radzen application with the following content:
namespace NorthwindNew
{
public partial class Startup
{
partial void OnConfigureServices(IServiceCollection services)
{
services.AddScoped<IPasswordHasher<ApplicationUser>, CustomPasswordHasher>();
}
}
public class CustomPasswordHasher : PasswordHasher<ApplicationUser>
{
public static string GenerateHash(string providedPassword, byte[] saltAsByteArray)
{
var sha = new System.Security.Cryptography.SHA1CryptoServiceProvider();
byte[] p1 = saltAsByteArray;
byte[] p2 = System.Text.Encoding.Unicode.GetBytes(providedPassword);
byte[] data = new byte[p1.Length + p2.Length];
p1.CopyTo(data, 0);
p2.CopyTo(data, p1.Length);
return Convert.ToBase64String(sha.ComputeHash(data));
}
public override PasswordVerificationResult VerifyHashedPassword(ApplicationUser user, string hashedPasswordAndSalt,
string providedPassword)
{
if (hashedPasswordAndSalt.IndexOf(":") != -1)
{
var hashedPassword = hashedPasswordAndSalt.Split(':')[0];
var salt = hashedPasswordAndSalt.Split(':')[1];
var hashedProvidedPassword = GenerateHash(providedPassword, Convert.FromBase64String(salt));
return hashedPassword == hashedProvidedPassword
? PasswordVerificationResult.SuccessRehashNeeded
: base.VerifyHashedPassword(user, hashedPassword, providedPassword);
}
else
{
return base.VerifyHashedPassword(user, hashedPasswordAndSalt, providedPassword);
}
}
}
}
Enjoy!
